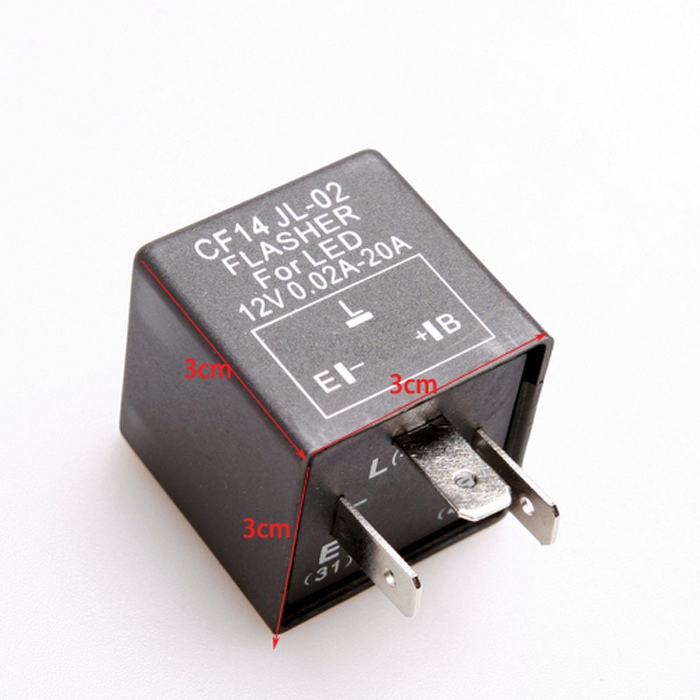

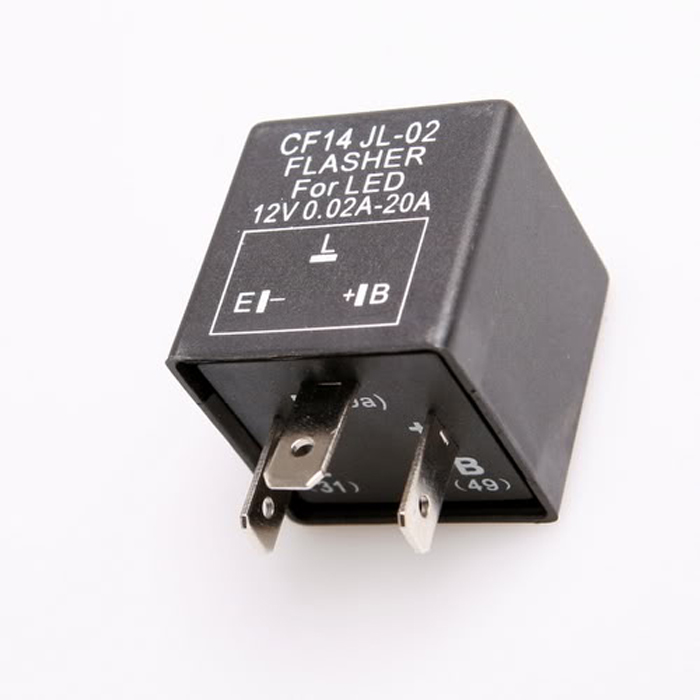

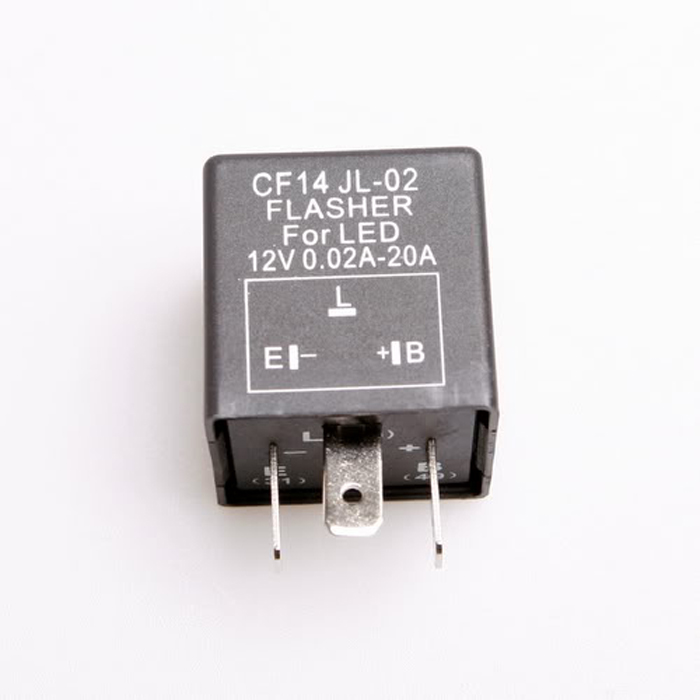

    CF14/JL02 3 PIN LED/SMD FLASHER/BLINKER FIX RELAY DECODER LO












    Most vehicles are using either CF13 or CF14 relay, the only difference is the pin pattern.  Please make sure you are using CF13 or CF14 before purchase.
    • Nominal Voltage: 12V
    • Operating Voltage: 11V-15V
    • Min Switch Current: 0.02A - Max Switch Current:  20A
    • Min Switch Load: 0.1W - Max Switch Load 240W
    • Flashing Frequency: 90 flash/min
    • Operating Temperature: -40°C to +80°C
    • This relay will solve LED light problem such as rapid blinker, fail to flash, bulb out or warning code on dashboard
    • Replace OEM part number: CF-14, JL-02
    • Please double check with your relay before purchase and make sure this is the correct module

    Q: What is the difference between CF13 and CF14 relay?

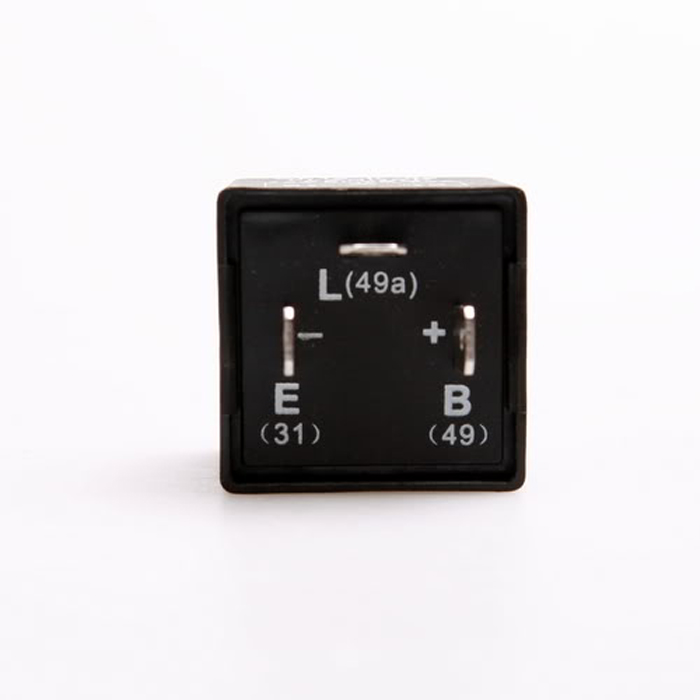

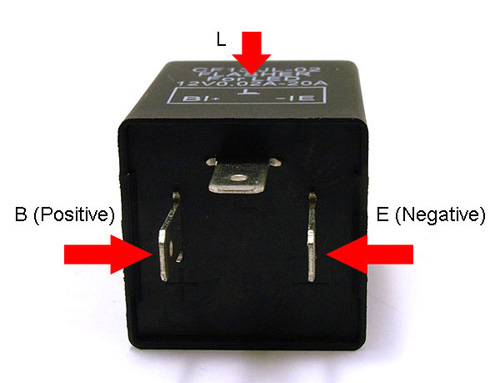

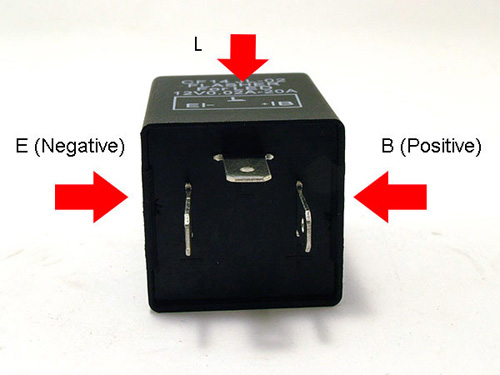

    The only difference of CF13 and CF14 relay is CF13 has the positive pin on the left and negative pin on the right, and CF14 has the negative pin on the left and positive pin on the right.


    CF13



    CF14
